Eaton Corporation

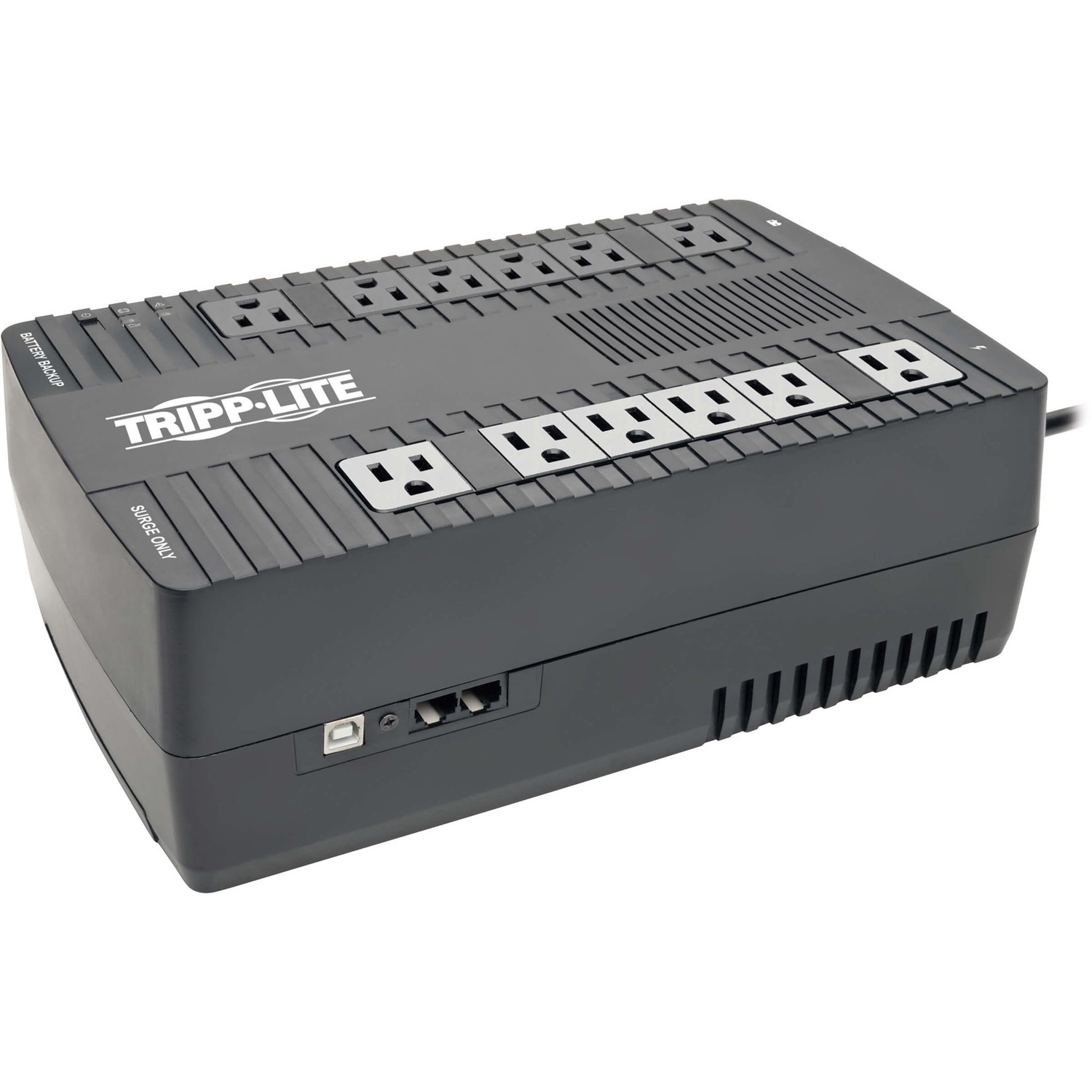

Tripp Lite series AVR 900VA Desktop UPS

Item #: TRPAVR900U
Thumbnail image 1 of 8
Thumbnail image 2 of 8
Thumbnail image 3 of 8
Thumbnail image 4 of 8
Thumbnail image 5 of 8
Thumbnail image 6 of 8
Thumbnail image 7 of 8
Thumbnail image 8 of 8
TRPAVR900U TRPAVR900U TRPAVR900U TRPAVR900U TRPAVR900U TRPAVR900U TRPAVR900U TRPAVR900U
High Resolution
Hi - Res
Product Tour
Product Tour
User Manual
User Manual
Shippable Product Shippable Product
Ultra-compact Desktop/Tower/Wall Mount - AVR - 8 Hour Recharge - 2.70 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC Output - Single Phase - USB - 12 x NEMA 5-15R Receptacle(s) - 6 x Battery/Surge Outlet
  • UPS circuits prevent interruption or data loss during power failures
  • AVR power conditioning keeps operation during brownouts and overvoltages
  • Surge-only outlets offer protection for items not requiring battery support
  • AC and dataline surge suppression prevents connected equipment damage
  • Perfect for protecting desktop computers, network workstations and more
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
AVR900U
Manufacturer Website Address
https://www.eaton.com
Brand Name
Tripp Lite series
Product Series
AVR
Product Name
AVR 900VA Desktop UPS
Marketing Information
AVR Series Line-Interactive UPS System offers ultra-compact, line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space saving right-angle input plug, six battery/surge-protected outlets and six additional surge-only outlets (12 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.

More from the Manufacturer

Packaged Quantity
1 Each
Product Type
Line-interactive UPS
Catalog
AAA Full Line Catalog
Catalog Page
N/A
Technical Information
AVR
Yes
AVR Range
Boost +18% / Buck -15%
Plug/Connector Type
NEMA 5-15P
Receptacle Type
NEMA 5-15R
Receptacle Detail
12 x NEMA 5-15R
Number of Battery & Surge Outlets
6
Number of Surge-only Outlets
6
Transfer Time
6 ms
EMI/RFI Noise Filter
Yes
Phase
Single Phase
Power Description
Load Capacity (VA)
900 VA
Load Capacity (Watt)
480 W
Input Voltage
120 V AC
Output Voltage
  • 110 V AC
  • 115 V AC
  • 120 V AC
Input Frequency
60 Hz
Output Frequency
60 Hz
Waveform Type
Pulse-width Modulated Sine Wave
Surge Energy Rating
316 J
Management
Alarm
  • Battery Backup
  • Low Battery
  • Fault
  • Overload
  • Replace Battery
Controls/Indicators
Status Indicators

2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions

Interfaces/Ports
USB
Yes
USB (HID Compliant) Port
Yes
Battery Information
DC System Voltage
12 V DC
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
2.70 Minute
Backup/Run Time (Half Load)
10 Minute
Typical Battery Recharge Time
8 Hour
Replaceable Battery
Yes
Environmental Conditions
Maximum Operating Temperature
104°F (40°C)
Storage Temperature
5°F (-15°C) - 113°F (45°C)
Physical Characteristics
Height
4.1"
Width
7.5"
Depth
12"
Form Factor
Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate)
16.50 lb
Miscellaneous
Package Contents
  • AVR 900VA Desktop UPS
  • Owner's manual
Additional Information
  • Appearance: All black ultra-compact housing

Output voltage regulation:

  • Sine wave 120V +14% / -12% (line mode)
  • PWM sine wave 115V +/-5% (battery mode)

Output frequency regulation:

  • Line Mode: Passes line frequency of 60Hz +/-10%
  • Battery Mode: Inverter output regulated to 60Hz +/-0.5Hz
Certifications & Standards

UL Listed Certification

Software Included
PowerAlert Software
Assembly Required
No
Country of Origin
Vietnam
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
3 Year
